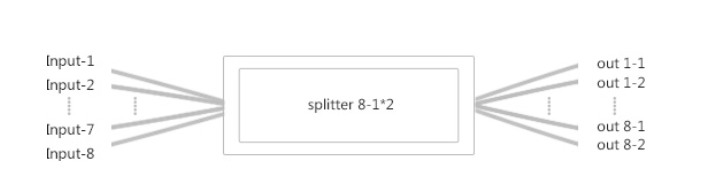

N-1x2(N) optical splitter is an optical power equalization product based on quartz substrate material and planar optical waveguide technology. It is mainly used for optical signal coupling and distribution in passive optical network(PON)systems. It can realize multiple 1x2 optical splitters to work simultaneous without interference. It is one of the most important passive components in optical networks. Cloudfiber is able to provide N-1x2(N) optical splitter in multiple modes such as 4-1x2, 8-1x2, 16-1x2 etc. The package can be customized to meet customer design,  such as compact steel tube type, ABS box type, Rack mount type.

Key Features：

Low Insertion loss

Low PDL

High Return Loss

Uniform Power Splitting

Compact Design

Applications：

FTTx (FTTB, FTTH, FTTC)

Passive Optical Networks (PON)

Local Area Networks (LAN)

CATV Systems

Test Equipments

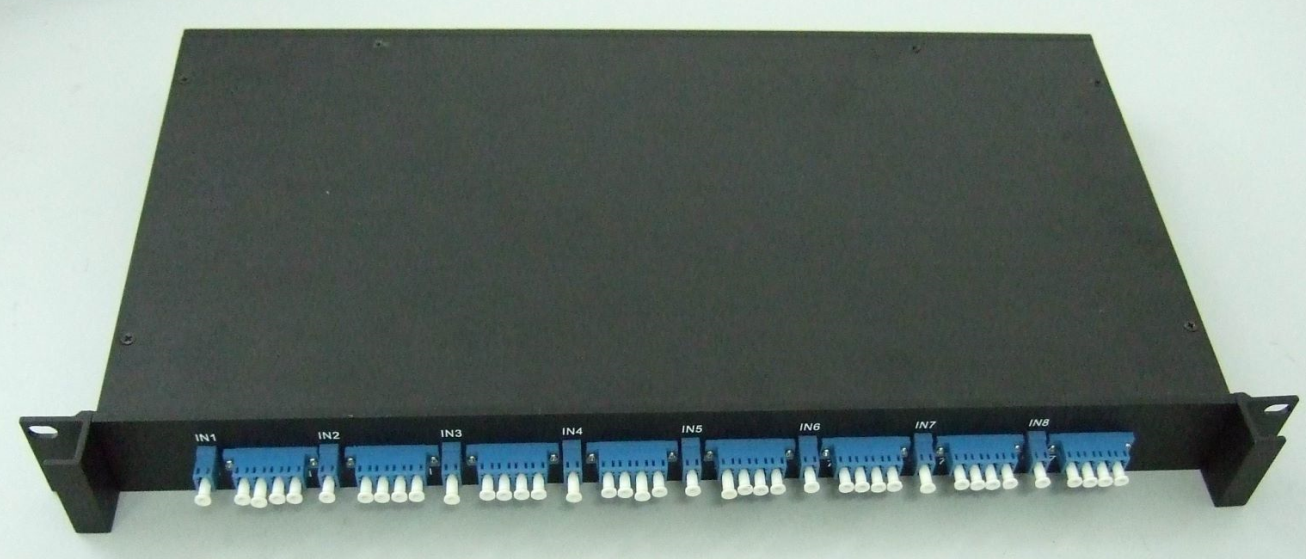

8-1x4 PLC Splitter:

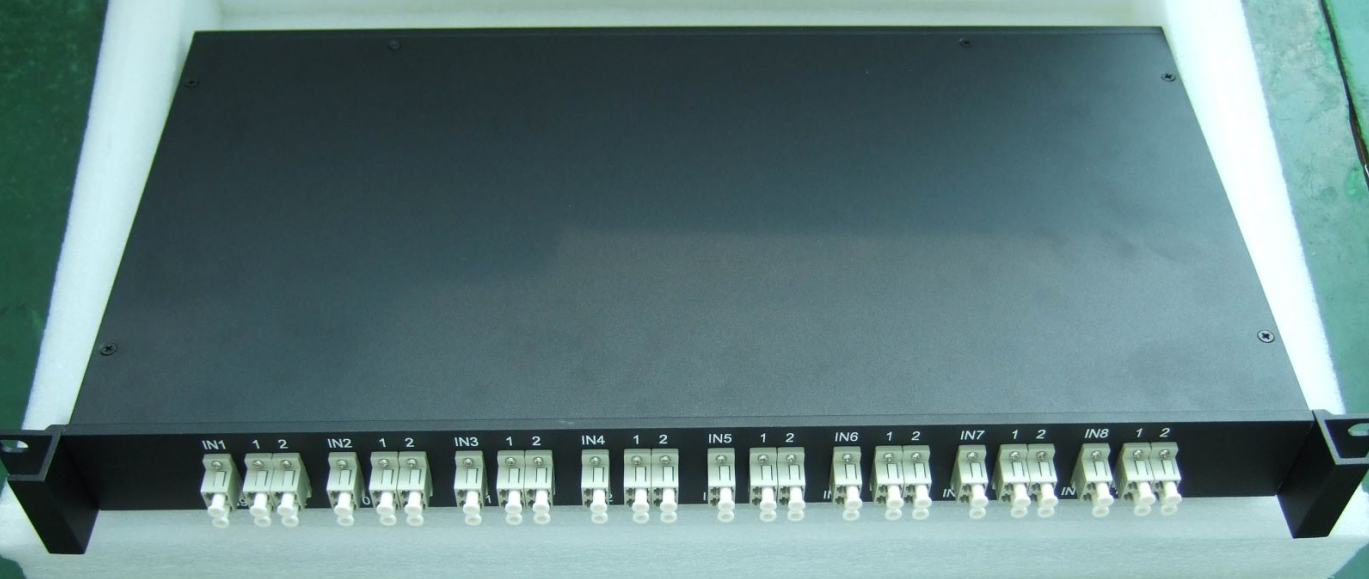

16-1X2 MM Fused Coupler:
