Cloudfiber’s Fiber Array Block Units utilize quartz , pyrex or tempax substrate and special fabrication technologies which achieve accurate fiber position and high reliability to meet different requirements. The Fiber arrays are produced by placing fibers in precision glass v-groove substrate with another flat glass chip on top to form a 3-point contact with unique material and processing technologies . This enables packaging designers to match the thermal expansion coefficient of fiber array with pigtail device.

Key Features：

High Precise Fiber Core-to-core Accuracy

Low Insertion Loss and High Reliability

Angle Polishing and Customized Product Available

Different Fiber Connector (Optional)

Applications：

Planar Lightwave Circuits Devices

Array Waveguide Grating (AWG’s)

Arrayed Active and Passive Fiber Devices

MEMS Devices

Multi-Channel Micro-optics Modules

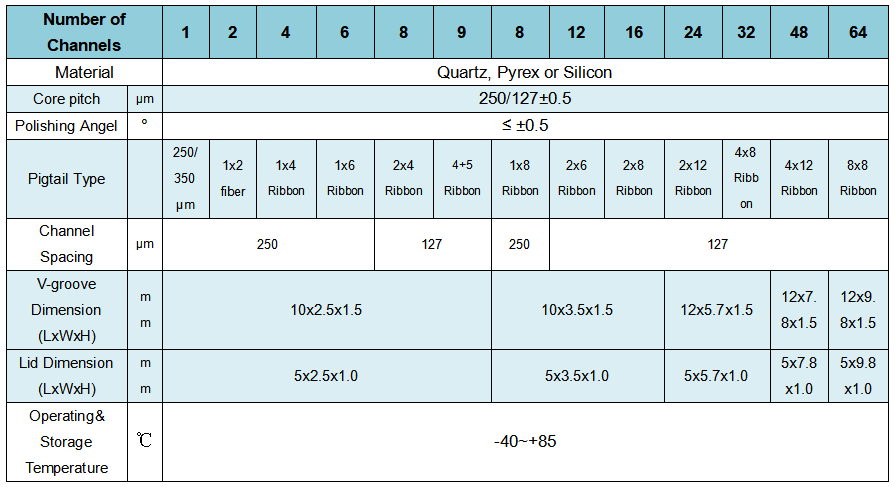

Specifications:

Nuber of Channels: 1CH-128CH any channel can be customized.

Polishing angle: 8°、0°、 12°、41° 、 45°  or customized.

Core Pitch: 127um, 250um，254um, 500um , 1000um or customized.

Fiber type: G657A1、G657A2、ZBL、OM3、OM4 or small mode field fiber customized.

Fiber Brand:  Corning, Fujikura or customized.

Fiber protruding length for FA end face:  Customized.

Ordering information:
