In the four-port circulator, if the signal is input from port 1, it is output from port 2; while the signal is input from port 2, it is output from port 3, and the signal is input from port 3, it is output from port 4. The product is widely used in fiber lasers, optical division and multiplexing, bidirectional pumping systems, dispersion compensation devices, fiber sensing, scientific research and other fields.

Key Features：

Low Insertion loss

Low PDL

High Stability and High Reliability

Epoxy Free Optical Path

Compact In-line Package

Applications：

Optical Amplifier

Metro Area Network

Wavelength Add/Drop

Dispersion Compensation

Bi-Direction Communication

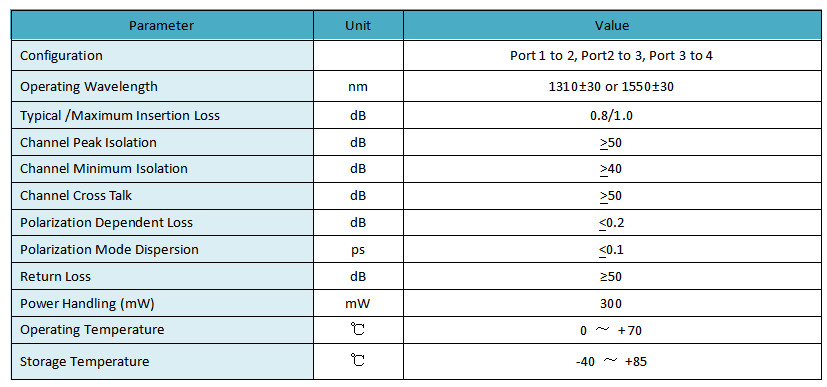

Specifications:

Note: All the data above does not include connectors. If the connector is added, the insertion loss is increased by 0.3dB.

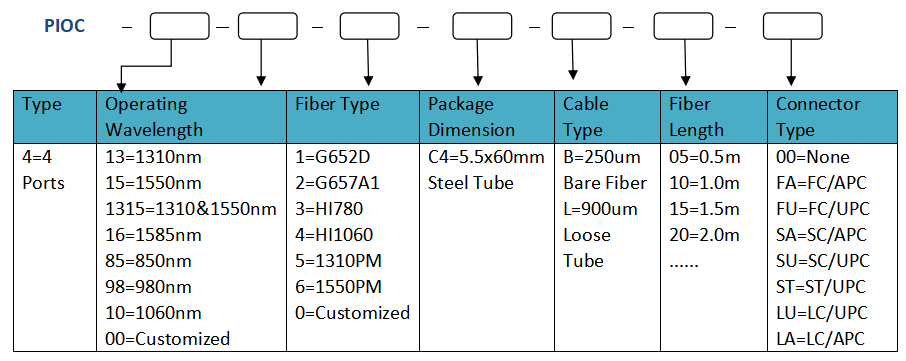

Ordering Information:

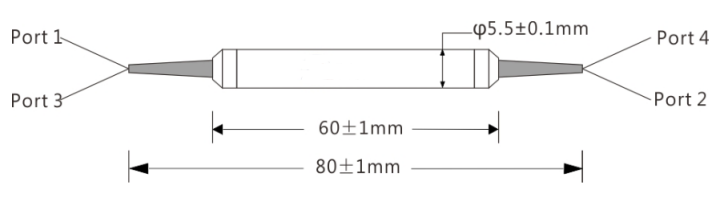

Mechanical Dimension:
