Cloudfiber’s 1x2 Coarse Wavelength Division Multiplexer (CWDM) devices(3 Ports) produced by TFF(thin-film filter) technology have the properties of low insertion loss, low crosstalk,wide pass bandwidth and high isolation, which enable users to establish a low cost bi-directional optical communication system.

Key Features：

Low Insertion loss

Wide pass band

High channel

High stability and reliability

Epoxy free on optical path

Applications：

Line monitoring

WDM network

Telecommunication

Cellular application

Fiber optical amplifier

Access network

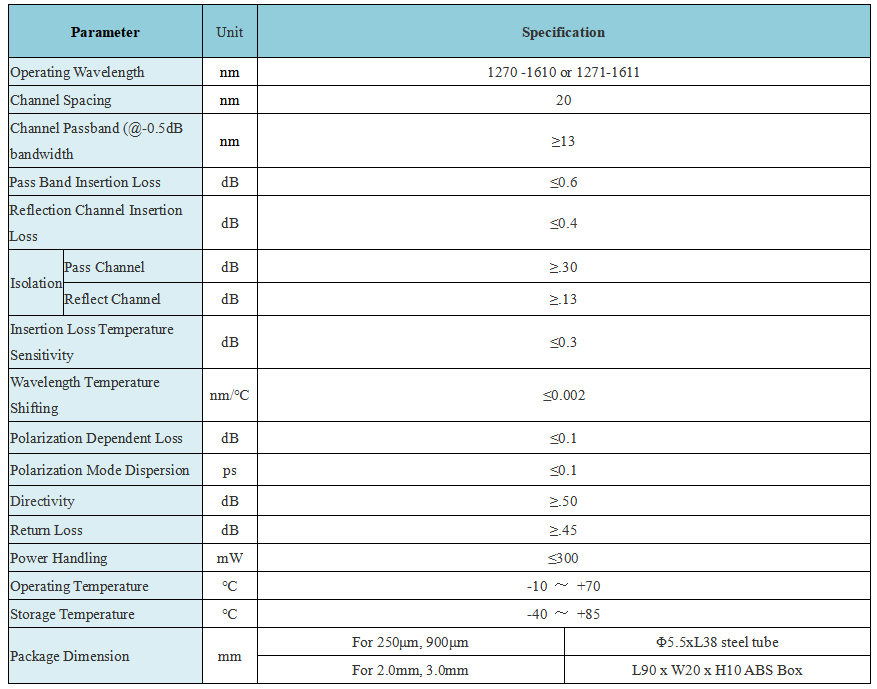

Specifications:

Note: All the data above does not include connectors. If the connector is added, the insertion loss is increased by 0.3dB.

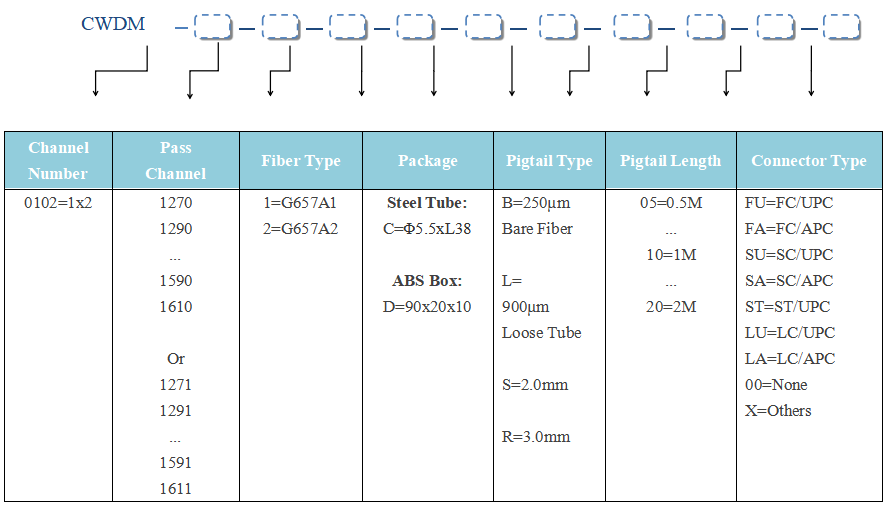

Order Information:

Package Dimension:
