Polarization Maintaining Planar Lightwave Circuit (PLC) Splitter is an optical splitter in which the polarization of linearly polarized light waves launched into the fiber is maintained during propagation, with little or no cross−coupling of optical power between the polarization modes.

Key Features：

Low Insertion loss

High Return Loss

High Extinction Ratio

Good channel-to-channel uniformity

Wide Operating Temperature:From -20℃ to 75℃

High Reliability and Stability

Applications：

FTTH, PON, CATV

EDFA & Raman Amplifier

Fiber Sensor

Fiber Optical Instrument

Power Monitoring System

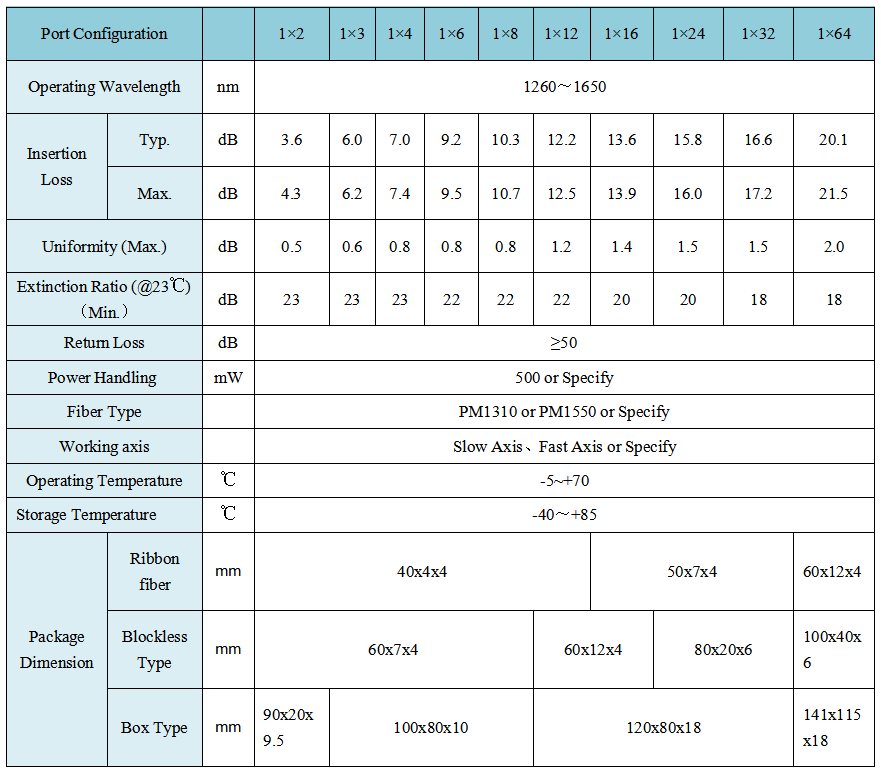

Specifications:

Note: All the data above does not include connectors. If the connector is added, the insertion loss is increased by 0.3dB.

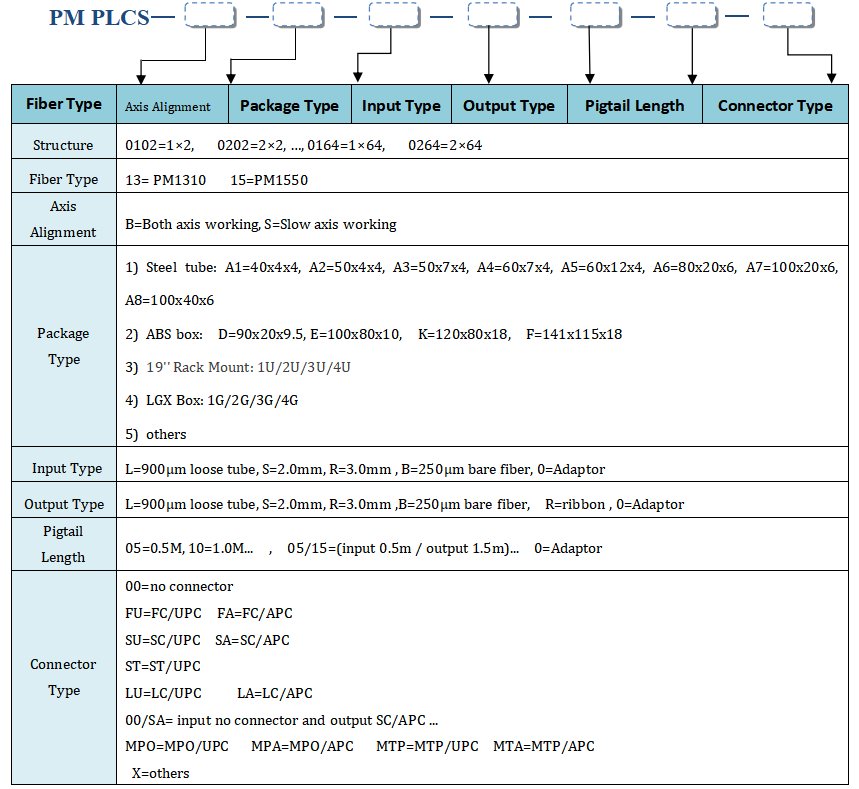

Ordering Information:
