The 1x2 980/1550nm WDM and isolator hybrid device (1x2 IWDM) can be used in EDFA with high isolation requirements, which can not only ensure the optical isolation to meet the requirements, but also reduce the size of the entire EDFA module. The isolator plays the role of reverse isolation here to further ensure that the isolation of the WDM device meets the requirements of EDFA.

Key Features：

Wide Operating Wavelength Range

Low Insertion Loss

High Channel Isolation

Ultra Low PDL & PMD

High Stability and Reliability

Epoxy Free Optical Path

Applications：

Optical Fiber Amplifier

CATV Fiberoptic Links

Fiberoptic Instruments

Transmitters and Fiber Lasers

Laboratory R&D

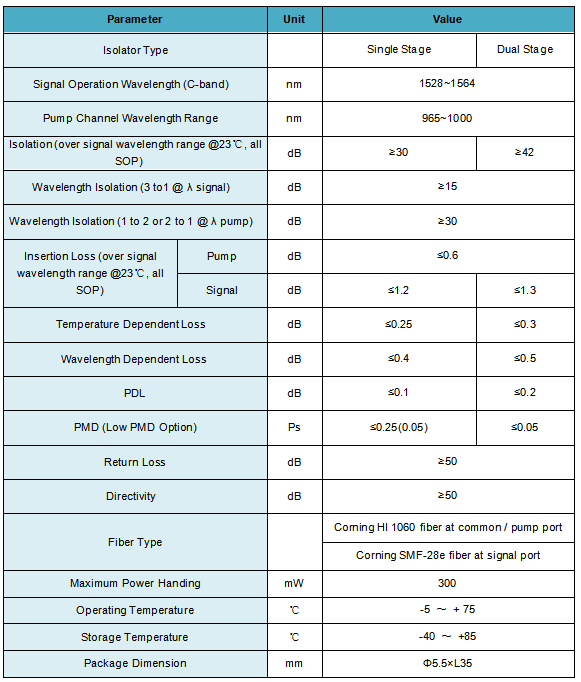

Specifications:

Note: All the data above does not include connectors.

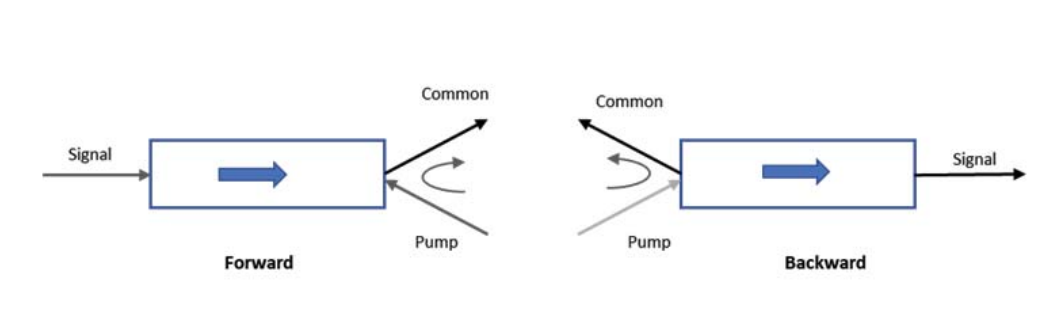

Port  Configurations:

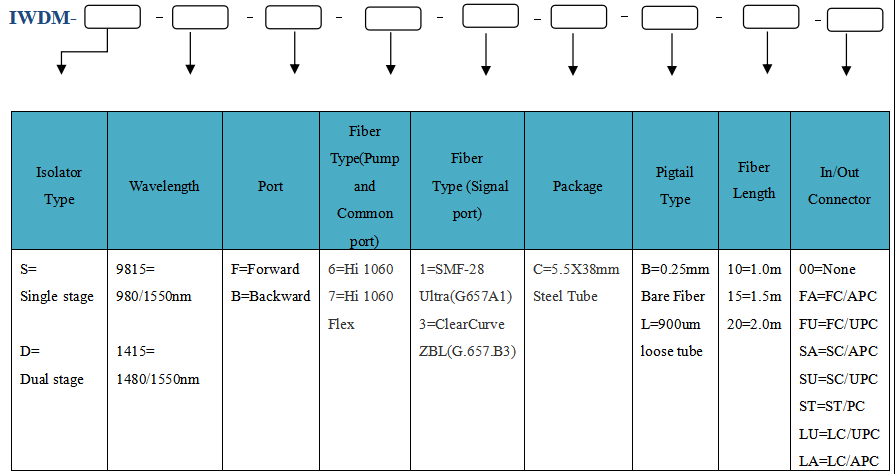

Ordering Information:
