Tap Coupler/Isolator/WDM Hybrid Combination

time:2021-09-01 11:10:50 click:


Cloudfiber’s TAIW is a combination of a tap coupler, an isolator and a wavelength division multiplexer in a compact package. The product has an extremely low insertion loss, a very stable tap-coupling ratio, high isolation, and high return loss. The TAIW  is ideal for fiber optic amplifier applications.


Key Features

Wide Operating Wavelength Range

Low Insertion Loss

High Channel Isolation

Ultra Low PDL and PMD

High Stability and Reliability

Epoxy Free Optical Path


Applications

Fiberoptic Amplifiers

CATV Fiberoptic Links

WDM Systems

Fiberoptic Instruments

Fiberoptic Instruments

Laboratory R&D

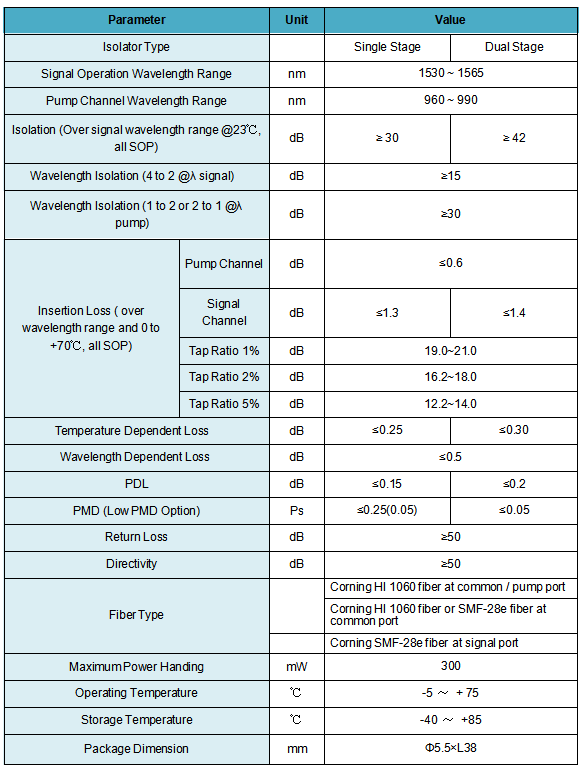

Specifications:


Note: All the data above does not include connectors.

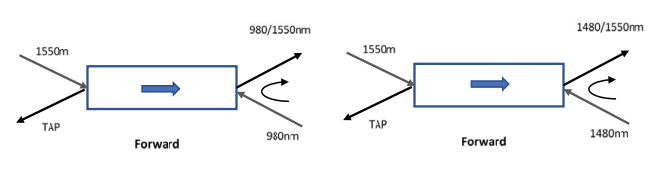

Port  Configurations:

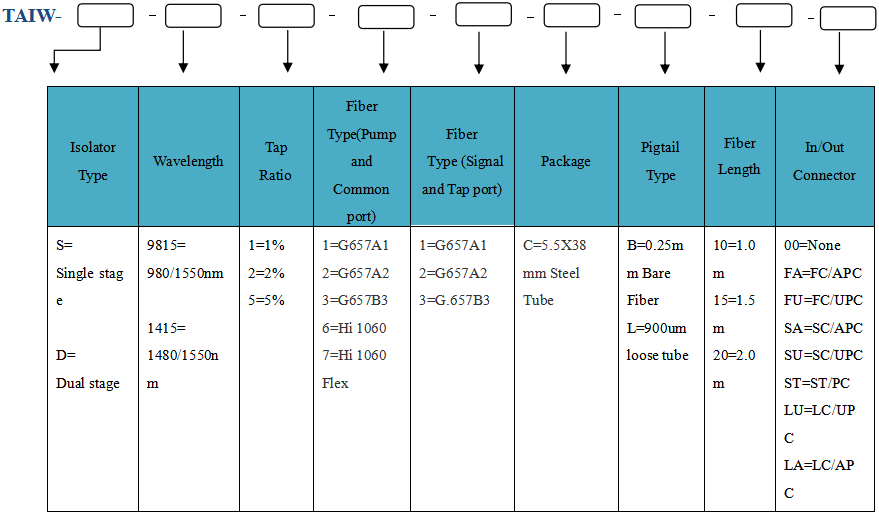

Ordering Information:
