Cloudfiber’s Fused Coupler utilizes our unique materials and manufacturing process with accurate control of fiber position, fusion and packaging processes to provide low insertion loss, low WDL and low PDL. They are available in a wide variety of configurations, including different split ratios, wavelength ranges, housing and connector types. Therefore, they can readily be specified for a wide variety of applications.The Multi- mode Optical Couplers are Based on FBT Technology, Have Excellent Performance.

Key Features：

Low Insertion loss

Low PDL

Various Coupling Ratio

Compact Design

High Reliability

Applications：

Network Monitoring

EDFA

Optical Testing  system

Optical Fiber Sensors

High Temperature Fiber Optic Systems

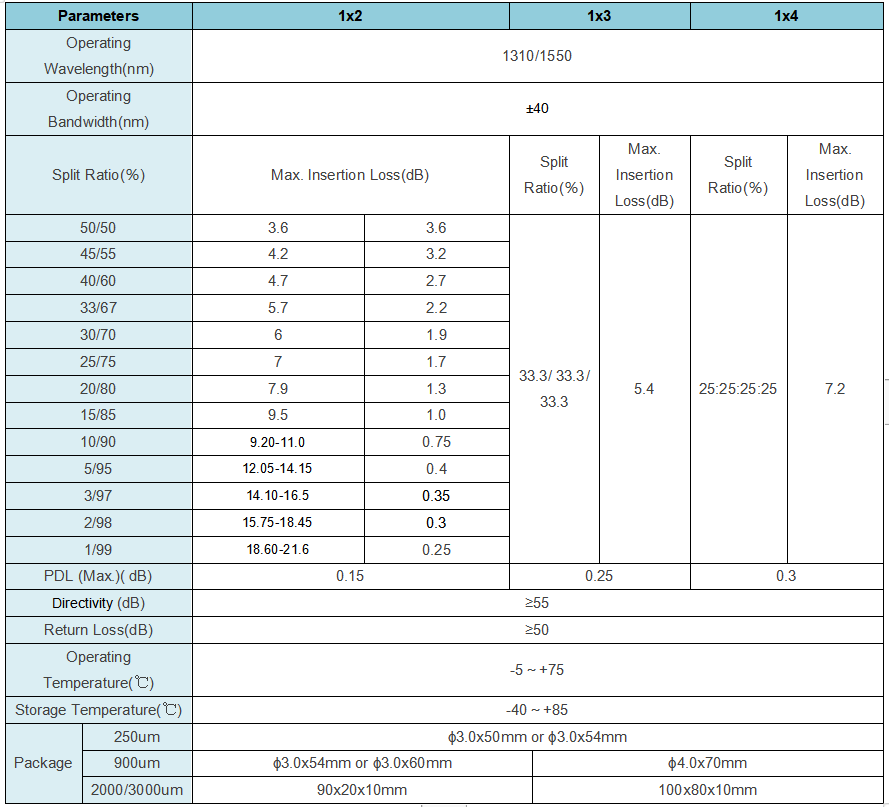

Specifications:

Note: All the data above does not include connectors. If the connector is added, the insertion loss is increased by 0.3dB.

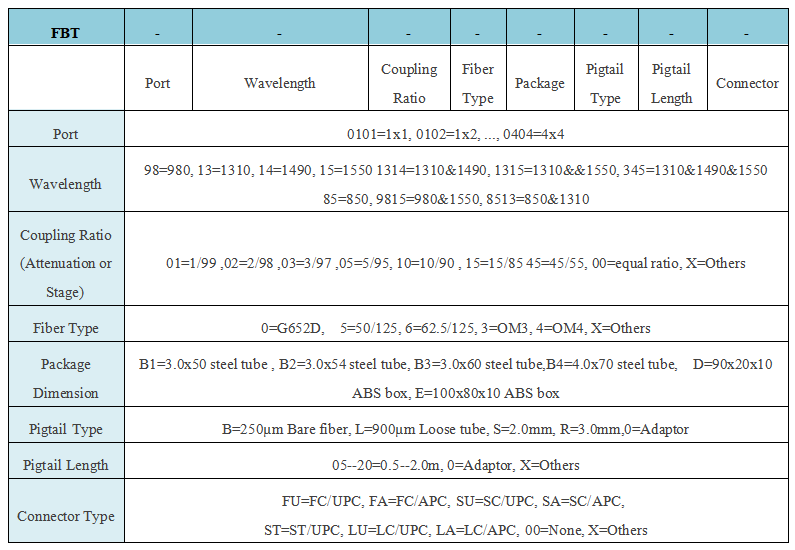

Ordering Information:
