This blockless fiber PLC Splitter is packaged in steel tube.Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Cloudfiber provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.

Key Features：

Low Insertion loss

Low PDL

High Return Loss

Uniform Power Splitting

Compact Design

Wide Operating Wavelength

Wide Operating Temperature

Excellent Environmental & Mechanical Stability

Qualified Under Telcordia GR-1221 and GR-1209

Applications：

FTTx (FTTB, FTTH, FTTC)

Passive Optical Networks (PON)

Local Area Networks (LAN)

CATV Systems

Test Equipments

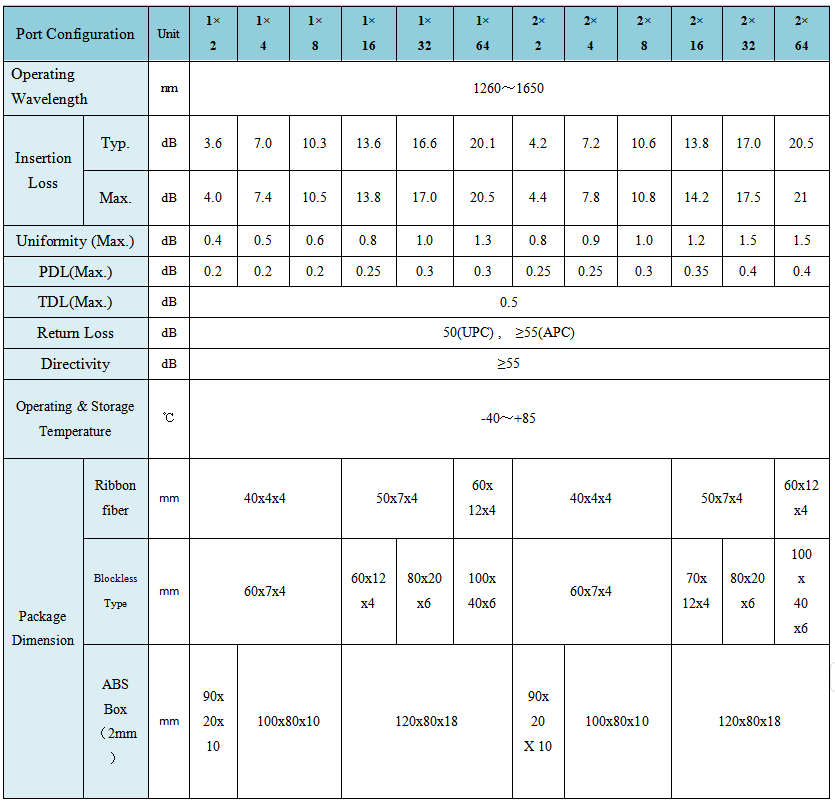

Specifications:

Note: All the data above does not include connectors. If the connector is added, the insertion loss is increased by 0.3dB.

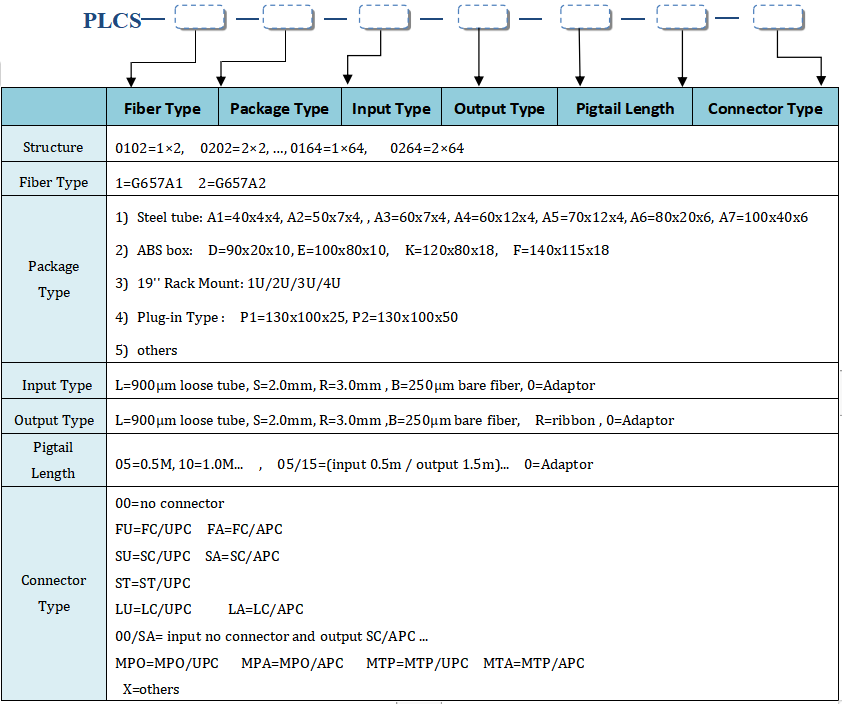

Ordering Information:
