Cloudfiber’s Coarse Wavelength Division Multiplexer (CWDM) devices and modules produced by thin-film filter technology have the properties of low insertion loss, low crosstalk,wide pass bandwidth and high isolation, which enable users to establish a low cost bi-directional optical communication system.

Key Features：

Low Insertion loss.

High Channel Isolation

Epoxy-Free in Optical Path

2~18 Channels Configuration

Applications：

CWDM/DWDM System

CATV System

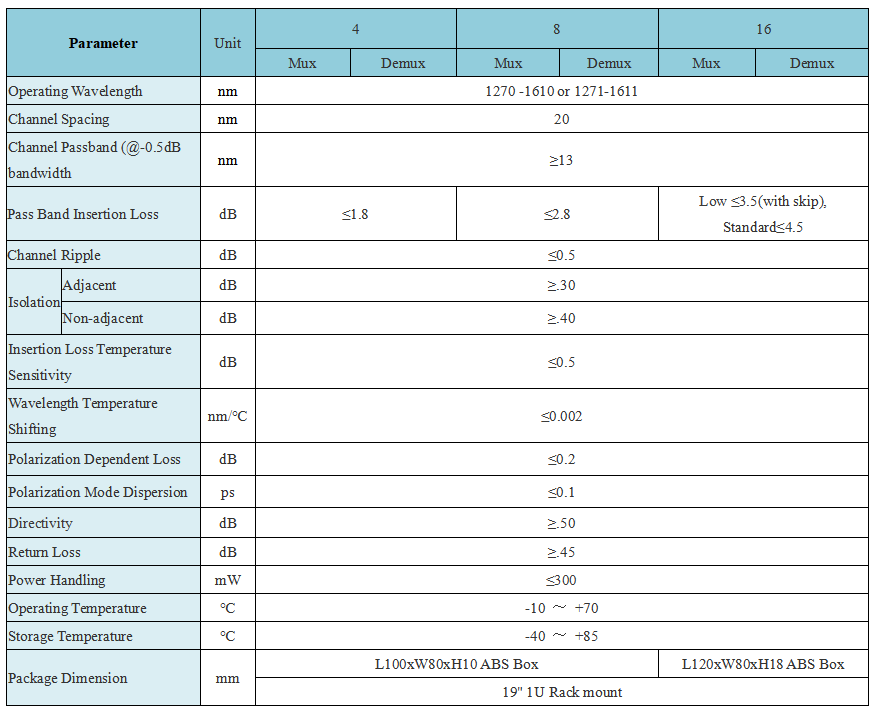

Specifications:

Note: All the data above does not include connectors. If the connector is added, the insertion loss is increased by 0.3dB.

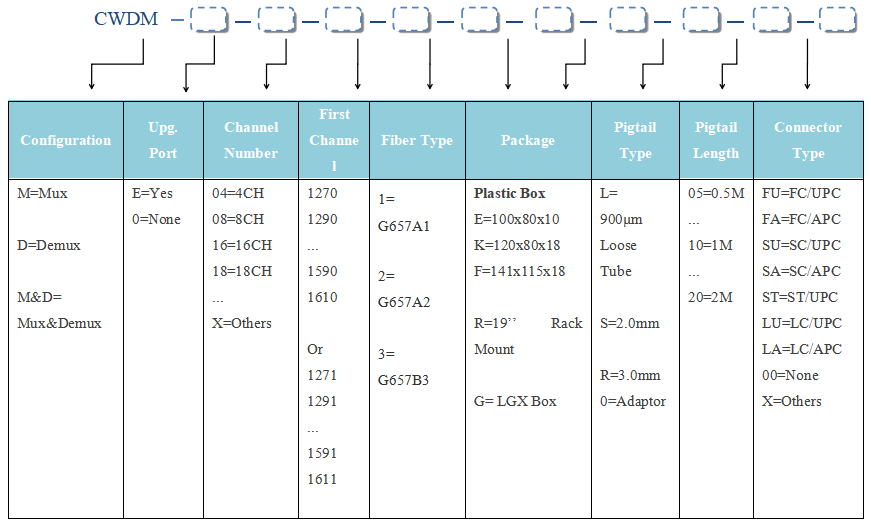

Order Information:
