Cloudfiber’s Dense Wavelength Division Multiplexer (DWDM) devices utilize thin-film filter technology and are available on ITU channel with spacing of 100GHz and 200GHz. They are in excess of Telcordia GR-1221 with low loss, guaranteeing temperature insensitivity and reliable performance in all applications.

Key Features：

Low Insertion loss

High Channel Isolation

Epoxy-Free in Optical Path

Excellent Thermal Stability

Applications：

DWDM System

Access Networks

Long Haul Networks

Metro Networks

CATV System

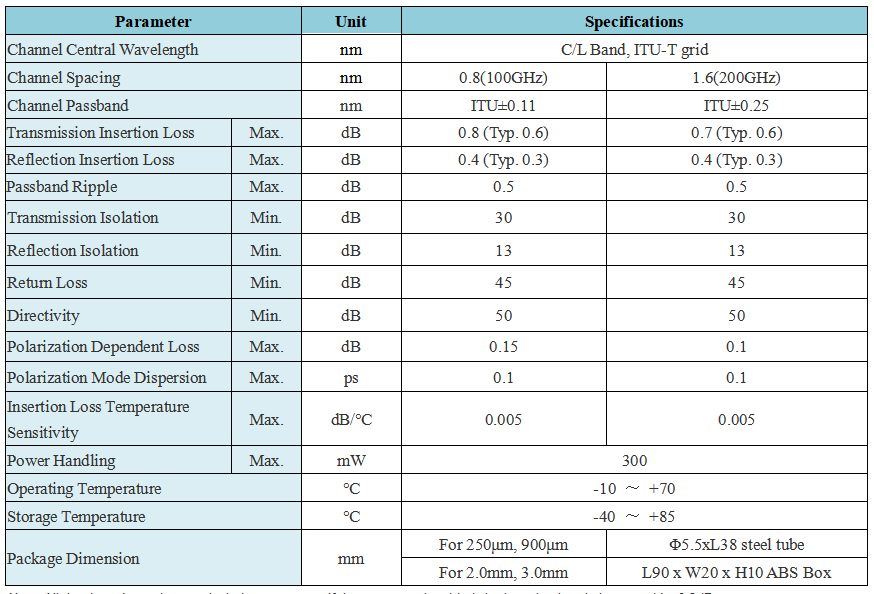

Specifications:

Note: All the data above does not include connectors. If the connector is added, the insertion loss is increased by 0.3dB.

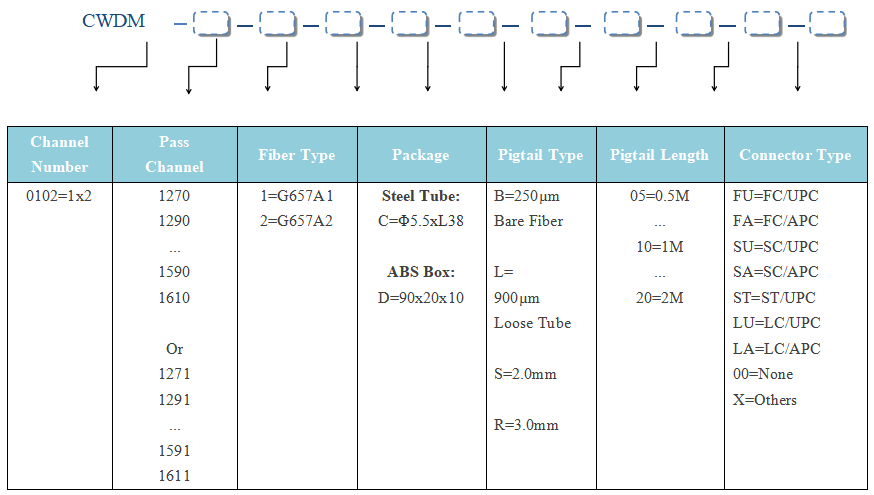

Order Information:

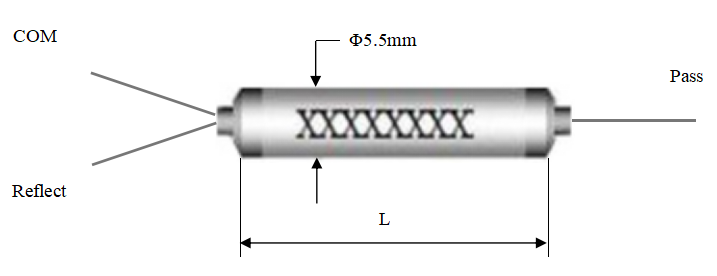

Package Dimension:
