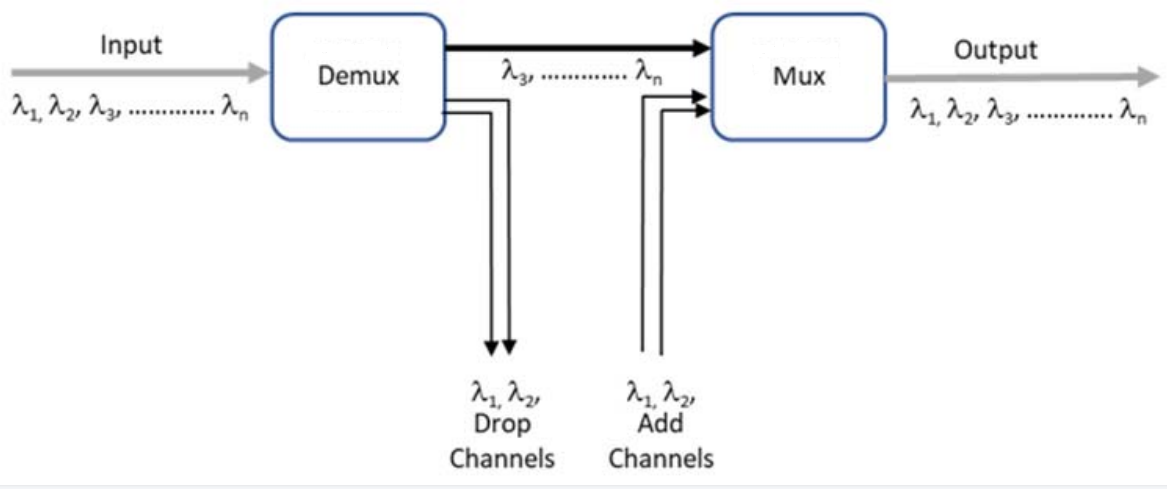

Cloudfiber’s Optical Add-Drop Multiplexer (OADM) is based on thin-film fiber technology and features low insertion loss, wide pass bandwidth and high isolation. It is designed to add or drop a specified wavelength and it is epoxy-free in the optical path. It has been widely used in high-power applications in WDM systems.

Key Features：

Low Insertion Loss

Wide Pass Band

High Channel Isolation

High Stability and Reliability

Epoxy Free Optical Path

CWDM Grid

Applications：

CWDM Channel Add/Drop

Metro/Access Networks

CATV Fiberoptic System

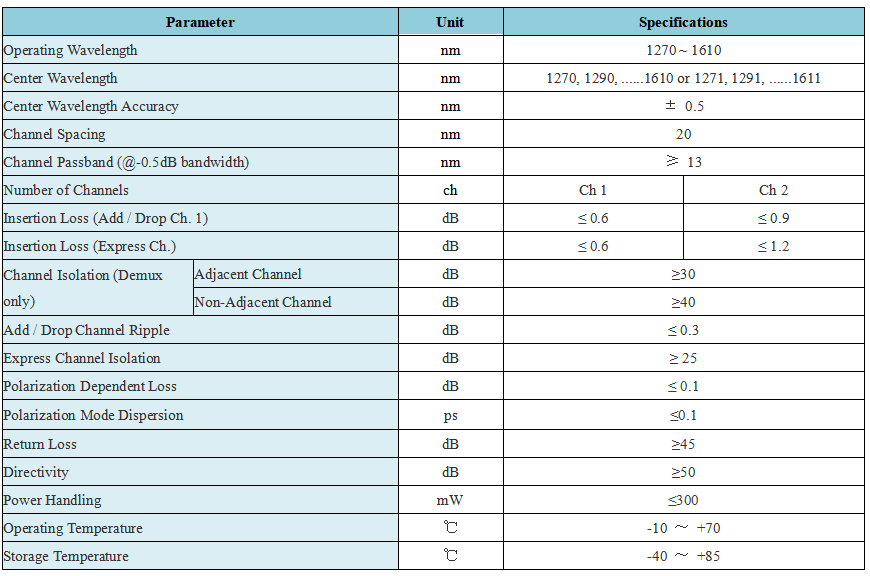

Specifications：

Note: All the data above does not include connectors.

Channel Configurations:

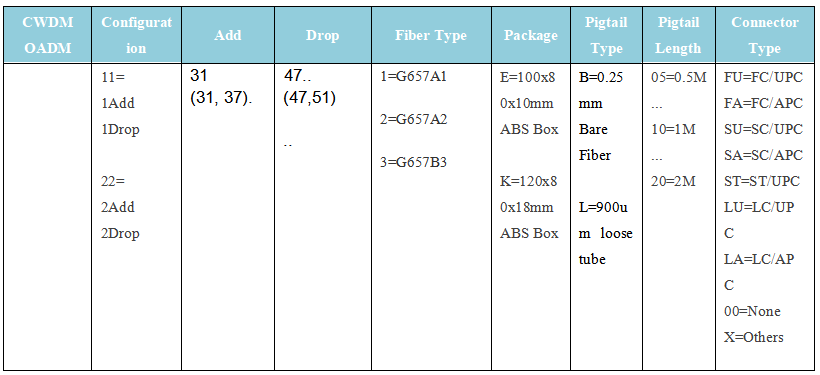

 Order Information:
