Polarization-maintaining fused couplers are the key devices for coupling, splitting and multiplexing of linearly polarized light. Its biggest feature is that it can stably transmit two orthogonal linearly polarized light, and can keep their polarization states unchanged, so as to become a variety of military interference sensors, coherent optical communication, fiber optic gyroscopes and fiber optic hydrophones required key optical devices.

Key Features：

Low Excess Loss and Insertion Loss

High Power Handling

High Stability and Reliability

High Extinction Ratio

Operating On Both Fast and Slow Axes

Applications：

Power Monitoring

Coherent Communication

Fiber Laser and Amplifier

Fiber Gyroscope

Fiber Sensor

Instrumentation

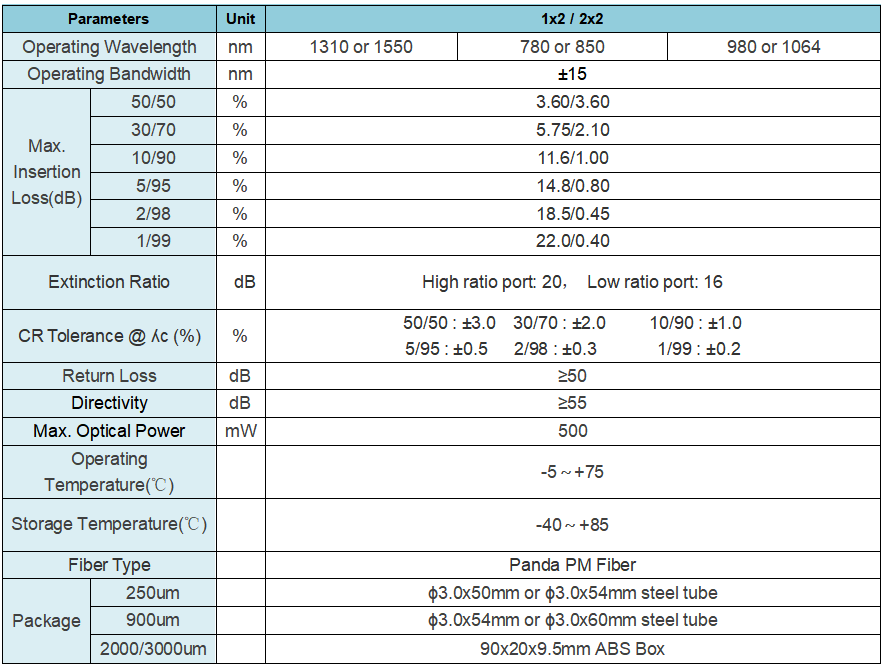

Specifications:

Note:  All the data above does not include connectors. IL is 0.3dB higher and ER 2dB lower for each connector added.Connector key is aligned to slow axis.

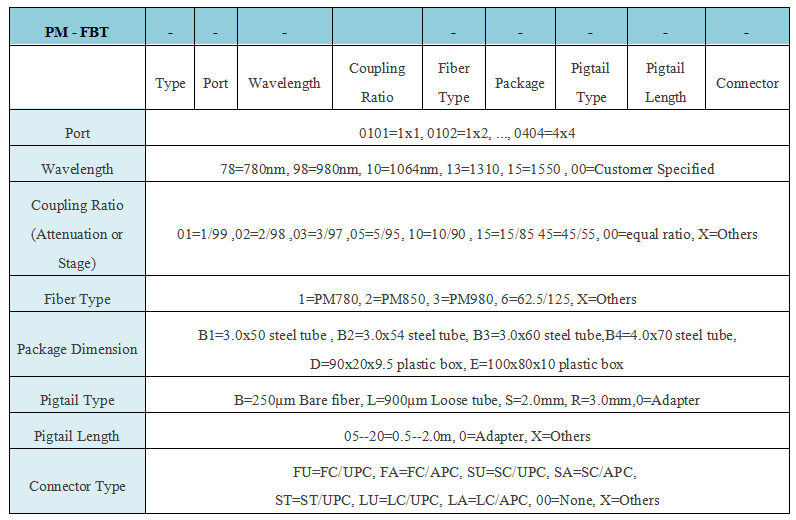

Order Information:
