The Polarization Maintaining Isolator is characterized with low insertion loss, high isolation, high return loss, high extinction ratio and excellent environmental stability and reliability. It is ideal for polarization maintaining fiber amplifers, fiber lasers, high speed communication systems and instrumentation applications.

Key Features：

High Isolation

Low insertion loss

High extinction ratio

High stability and reliability

Applications：

EDFA & Fiber Optical Instrument

Fiber Sensor

Fiber Laser

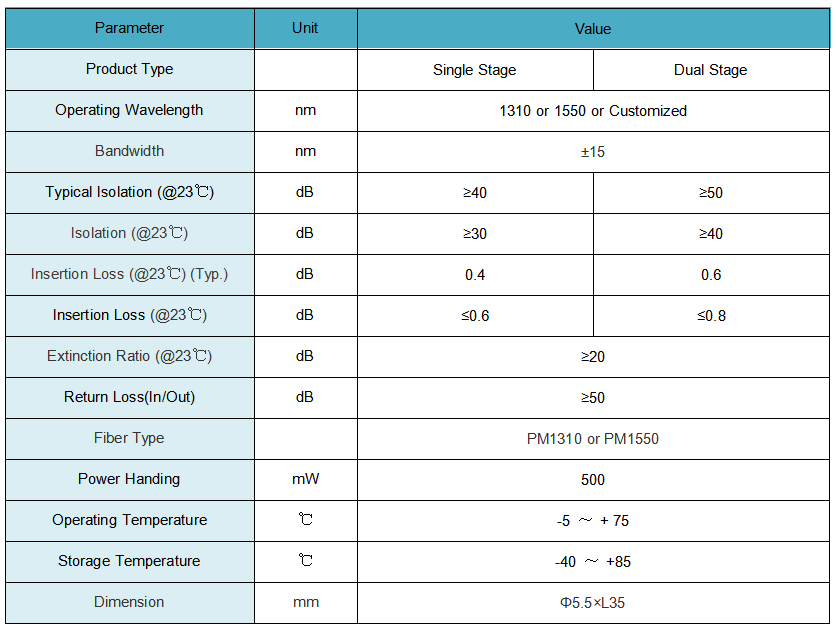

Specifications:

Note:  All the data above does not include connectors. IL is 0.3dB higher and ER 2dB lower for each connector added.Connector key is aligned to slow axis.

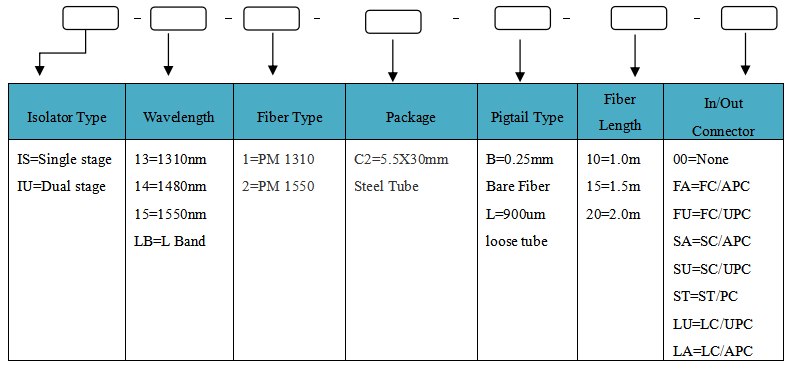

Order Information:
