Cloudfiber’s polarization maintaining optical circulator utilizes proprietary designs and metal bonding microoptics packaging.  It provides low insertion loss, broad band high isolation, high extinction ratio, excellenttemperature stability and epoxy free optical path.  It can be used for wavelength add/drop, dispersioncompensation, and EDFA applications.

Key Features：

Low insertion loss

Wide band, high isolation

High extinction ratio

Compact in-line package

High stability and reliability

Epoxy free on optical path

Applications：

Optical amplifer

Metro area network

Wavelength add/drop

Dispersion compensation

Bi-directional communication

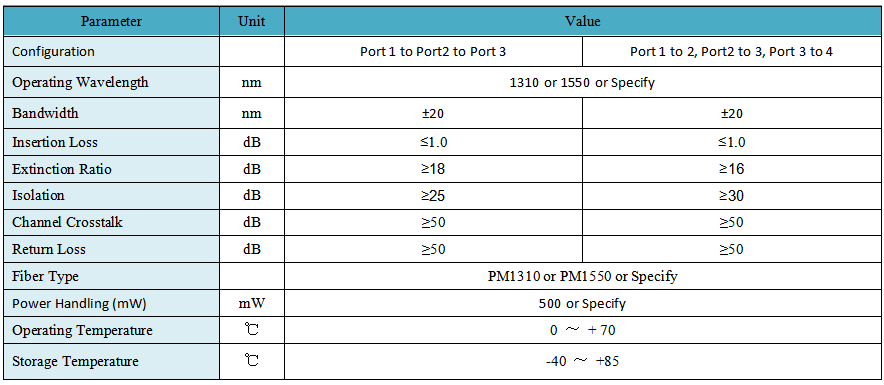

Specifications:

Note:  All the data above does not include connectors. IL is 0.3dB higher and ER 2dB lower for each connector added.Connector key is aligned to slow axis.

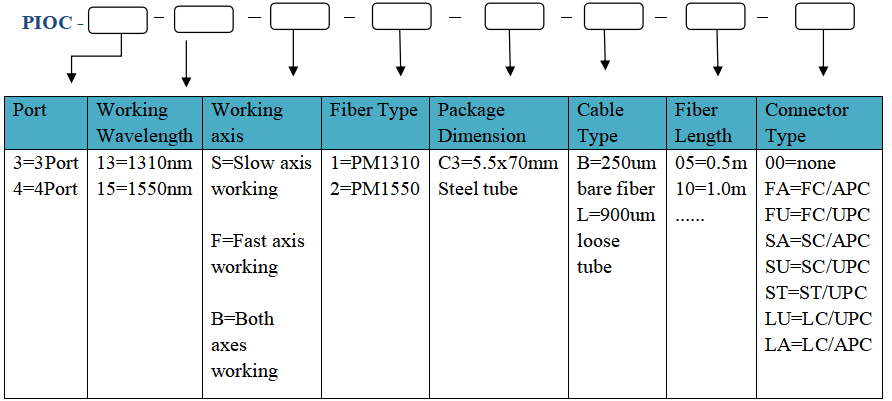

Order Information:
